Thickness of paperboard 0.5 mm ~ 5 mm ( G~A Flute )
Maximum sheet size 1450 x 1000 mm
Minimum sheet size 540 x 360 mm
Maximum cutting size 1430 x 980 mm
Maximum operational pressure 350 tons
Maximum speed 5000 sheet/hour (depends complex of die mold and paper's condition)
Weight of machine 30 tons
Power 37 HP




  • The paper outfeed station employs main-and sub-paper bracket for alternative use without stop of the machine. This results in higher productivity.
  • Mechanical transmission system achieves accurate paper infeed.
  • The front stop at infeed end can be adjusted vertically to meet paper sheets, assuring the maximum stability of paper infeed motions.

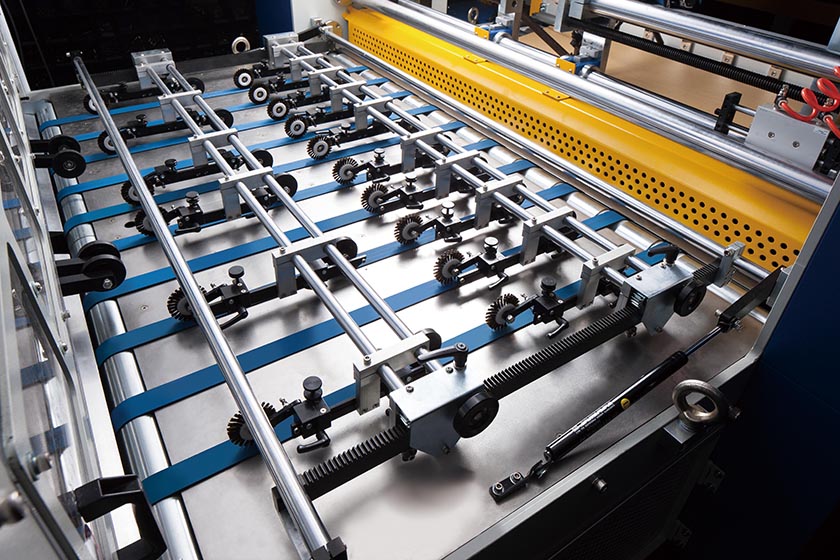

Positioning Mechanism

  • This improved in-feed system will provide very tight register tolerance. It is able to handle die cutting on not only corrugated board but also on printed board without a register problem.
  • Specially designed roller system easily processes various thicknesses of paper and corrugated board.
  • Special design side guide which is suitable for various thicknesses of paper and corrugated board; accurate and easy to adjust.

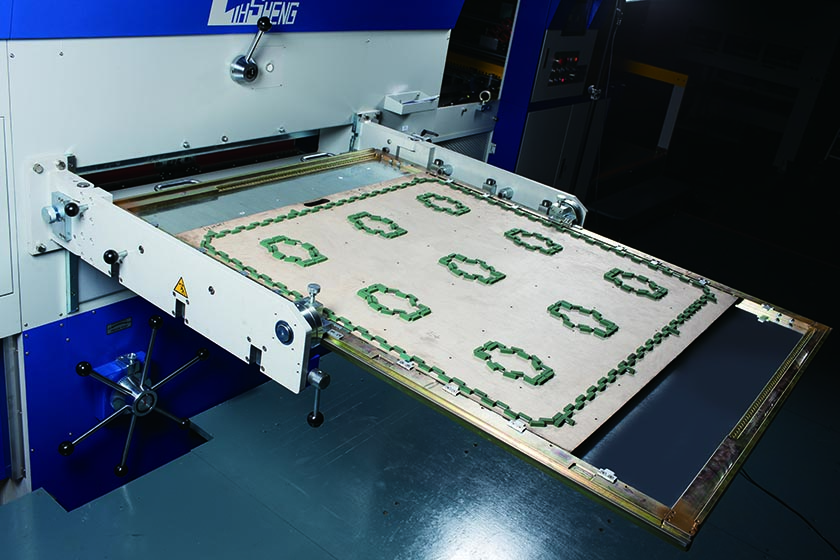

Die Cutting Sataion

  • The slide rail type die frame features a safety design and is easy to install and dismantle. The rotating die frame design allows easy replacement of dies.
  • Lower cutting plate is precision ground, featuring smooth die face.
  • Bottom mold plate can unload and reserve the cutting mold for next time use.

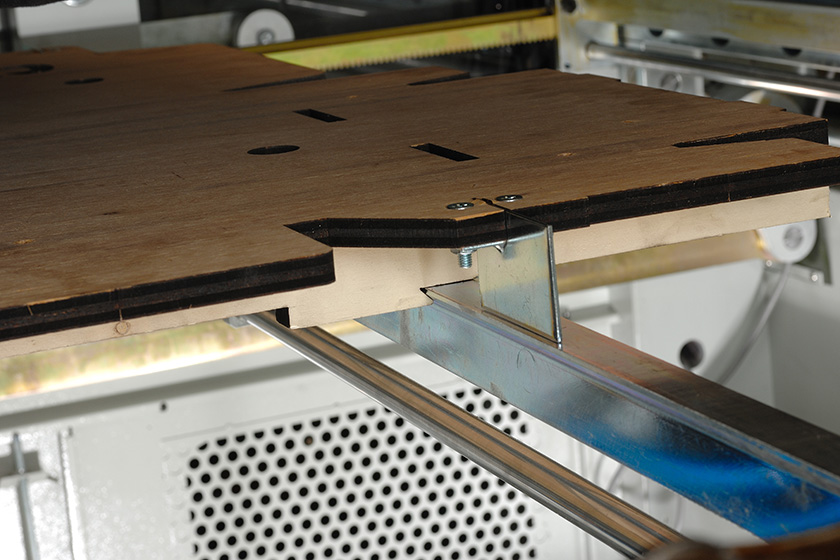

Stripping Mechanism

  • Co-ordinates with the cutting station, the structure with no frame can be adjusted fast and accurately.
  • Top unit can be disengaged when not in use.

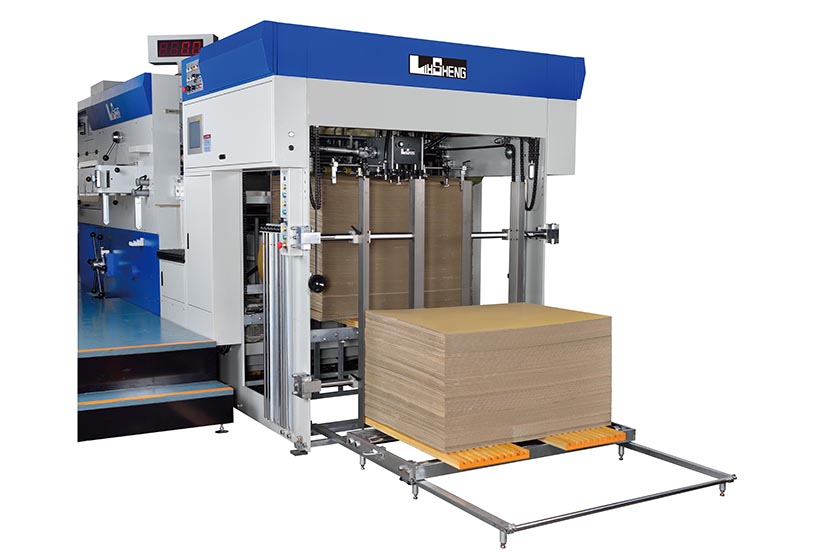

Paper Collection Station

  • Non-stop delivery allows changing of pallets without interrupting the running job, saving time.
  • Paper counter with tape inserter for easy counting and effortless packing.
  • High-efficiency conveyor system allows longer machine running time and maximum production. (Opt.)
